Description

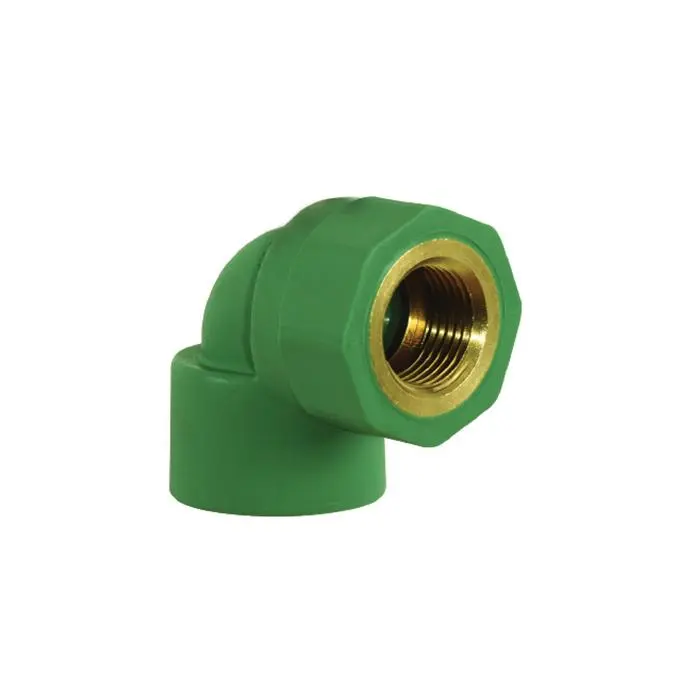

PPR Female Elbow
A PPR Female Elbow is a 90-degree transition fitting designed to connect a PPR pipe to a male-threaded plumbing component while changing the direction of the pipeline. It features a heat-fusion PPR socket on one end and a durable brass female threaded insert on the other, providing a secure, leak-proof connection between PPR piping systems and threaded fixtures.
At Instefast, we supply premium-quality PPR female elbows that are suitable for residential, commercial, agricultural, and industrial plumbing applications.
Features
- Manufactured from premium Polypropylene Random Copolymer (PPR)
- High-quality corrosion-resistant brass female threaded insert
- 90° elbow for changing pipe direction
- Heat fusion connection for permanent, leak-proof joints
- Suitable for hot and cold water systems
- Excellent resistance to pressure, corrosion, and chemicals
- Safe for potable drinking water
- Long service life exceeding 50 years
Available Sizes
| PPR Pipe Size | Female Thread Size (BSP) |
|---|---|
| 20 mm | 1/2″ |
| 20 mm | 3/4″ |
| 25 mm | 1/2″ |
| 25 mm | 3/4″ |
| 25 mm | 1″ |
| 32 mm | 1″ |
| 40 mm | 1¼” |
| 50 mm | 1½” |
| 63 mm | 2″ |
Additional sizes are available upon request.
Applications
PPR female elbows are commonly used for connecting PPR pipes to:
- Wall-mounted taps
- Ball valves
- Gate valves
- Pumps
- Water meters
- Pressure gauges
- Water heaters
- Water tanks
- Industrial equipment
- Irrigation systems
Technical Specifications
| Property | Specification |
|---|---|
| Material | Polypropylene Random Copolymer (PPR) with Brass Insert |
| Connection Type | Heat Fusion × Female BSP Thread |
| Elbow Angle | 90° |
| Pressure Rating | PN20 / PN25 |
| Operating Temperature | Up to 95°C |
| Thread Standard | BSP (British Standard Pipe) |
| Colour | Green (Standard) |
| Standard | ISO 15874 / DIN 8077 & DIN 8078 |
Advantages
- Changes pipe direction by 90°
- Provides a reliable transition from PPR to male-threaded fittings
- Leak-proof heat fusion joint
- Durable brass female threads for secure connections
- Resistant to corrosion and scaling
- Suitable for high-pressure plumbing systems
- Easy to install and maintain
- Compatible with standard BSP threaded components
Installation Guide
- Cut the PPR pipe square using a pipe cutter.
- Heat the pipe and the PPR socket using a fusion welding machine.
- Insert the pipe fully into the socket and allow it to cool.
- Wrap PTFE thread sealing tape around the male-threaded fitting.
- Screw the male-threaded fitting into the female elbow.
- Tighten securely using the appropriate tools without over-tightening.
- Pressure-test the system before commissioning.
Why Choose Instefast PPR Female Elbows?
- Premium-quality PPR and brass construction
- Precision-machined BSP female threads
- Available in multiple sizes
- Strong, durable, and corrosion-resistant
- Competitive prices across Kenya
- Fast nationwide delivery
- Professional technical support
