Description
PPR Male Elbow

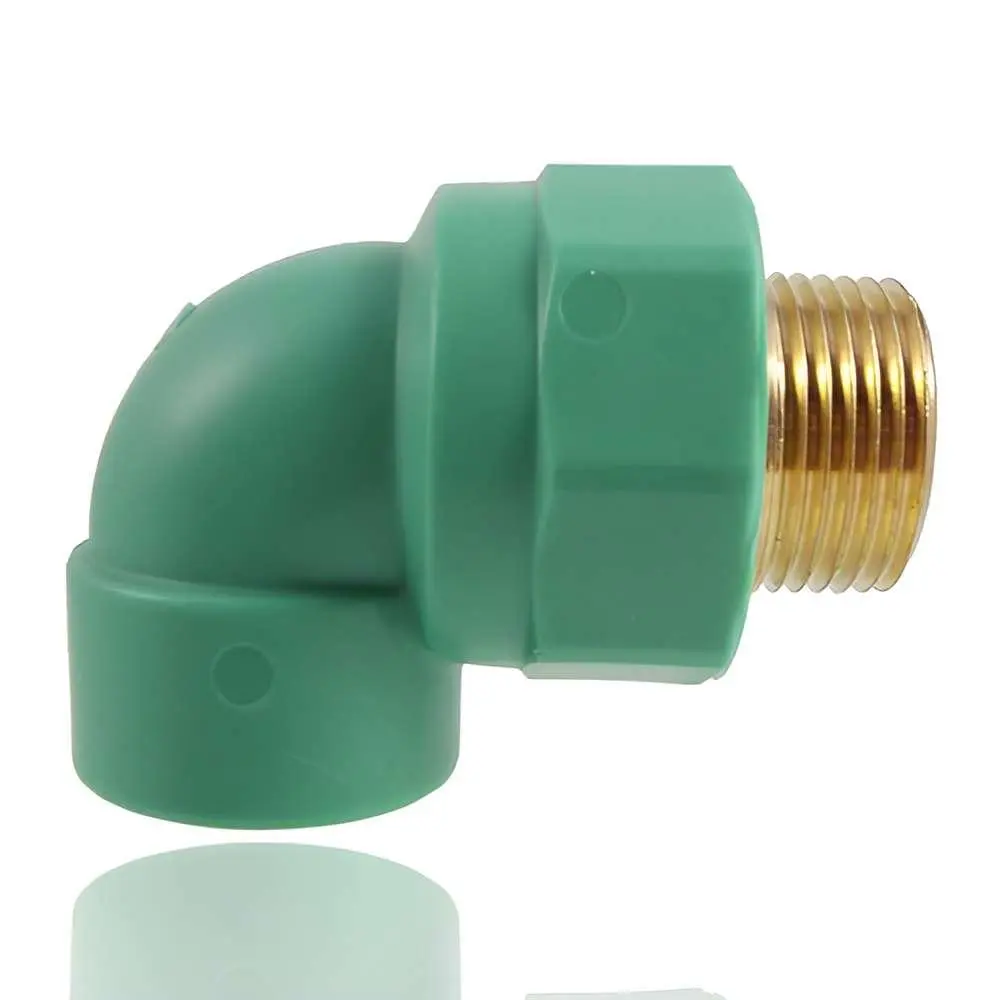

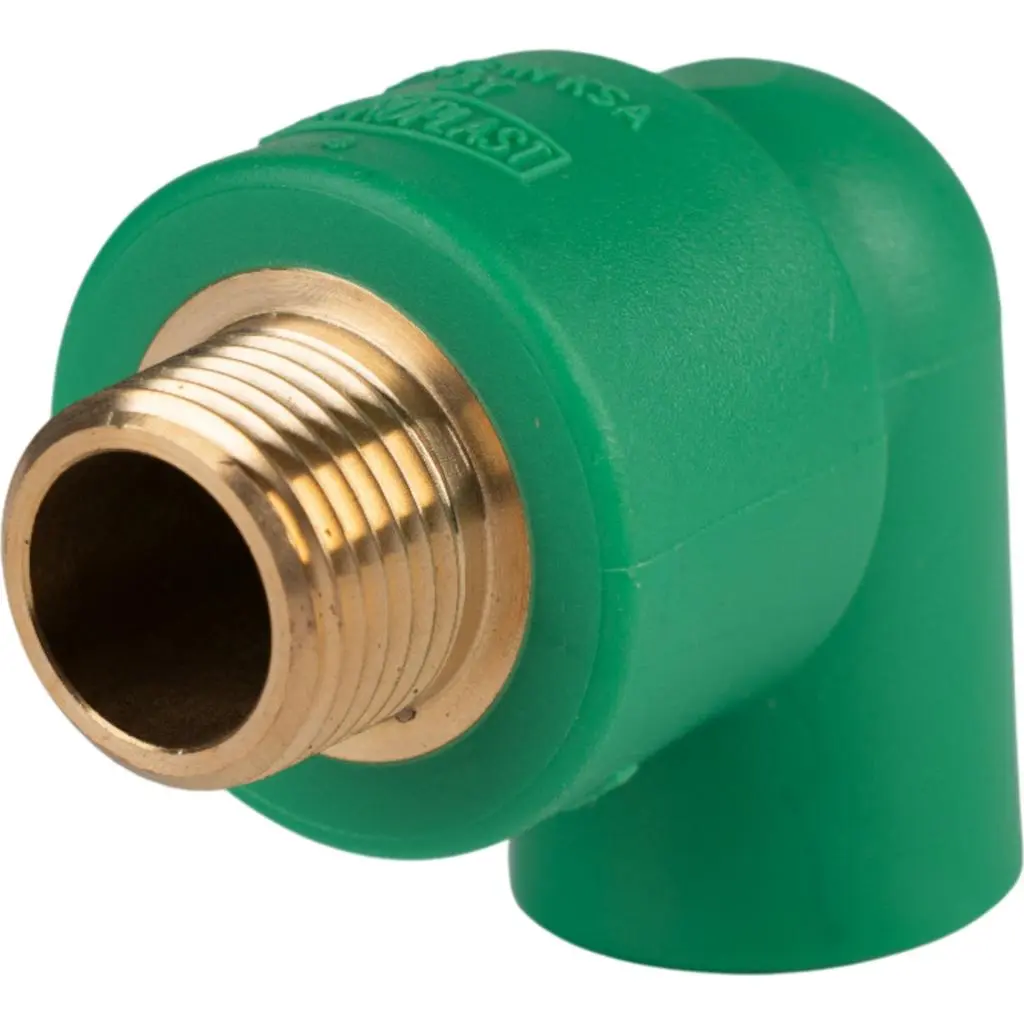

A PPR Male Elbow is a 90-degree threaded fitting used to change the direction of a PPR pipeline while connecting it to a female-threaded plumbing component. It features a heat-fusion PPR socket on one end and a durable brass male thread on the other, making it ideal for joining PPR pipes to taps, valves, pumps, water meters, and other threaded fittings.
At Instefast, we supply premium-quality PPR male elbows designed for reliable performance in residential, commercial, agricultural, and industrial plumbing systems.
Features
- Manufactured from high-quality Polypropylene Random Copolymer (PPR)
- Corrosion-resistant brass male threaded insert
- 90° elbow design for directional pipe changes
- Heat fusion socket provides a permanent leak-proof joint
- Suitable for hot and cold water systems
- Excellent pressure and temperature resistance
- Safe for potable drinking water
- Long service life of over 50 years
Available Sizes
| PPR Pipe Size | Male Thread Size (BSP) |
|---|---|
| 20 mm | 1/2″ |
| 20 mm | 3/4″ |
| 25 mm | 1/2″ |
| 25 mm | 3/4″ |
| 25 mm | 1″ |
| 32 mm | 1″ |
| 40 mm | 1¼” |
| 50 mm | 1½” |
| 63 mm | 2″ |
Additional sizes are available upon request.
Applications
PPR male elbows are commonly used for connecting PPR pipes to:
- Wall-mounted taps
- Ball valves
- Gate valves
- Water meters
- Pumps
- Pressure gauges
- Water heaters
- Water tanks
- Industrial equipment
- Irrigation systems
Technical Specifications
| Property | Specification |
|---|---|
| Material | Polypropylene Random Copolymer (PPR) with Brass Insert |
| Connection Type | Heat Fusion × Male BSP Thread |
| Elbow Angle | 90° |
| Pressure Rating | PN20 / PN25 |
| Operating Temperature | Up to 95°C |
| Thread Standard | BSP (British Standard Pipe) |
| Colour | Green (Standard) |
| Standard | ISO 15874 / DIN 8077 & DIN 8078 |
Advantages
- Changes pipe direction by 90°
- Provides a secure transition from PPR to threaded fittings
- Leak-proof heat fusion joint
- Strong brass threads resist wear and corrosion
- Suitable for high-pressure plumbing systems
- Easy to install and maintain
- Compatible with standard BSP threaded fittings
Installation Guide
- Cut the PPR pipe square using a pipe cutter.
- Heat the pipe and PPR socket with a fusion welding machine.
- Insert the pipe into the socket and allow it to cool.
- Wrap PTFE thread sealing tape around the male threads.
- Screw the fitting into the female-threaded component.
- Tighten securely without over-tightening.
- Test the system for leaks before commissioning.
Why Choose Instefast PPR Male Elbows?
- Premium-quality PPR and brass construction
- Precision-machined BSP threads
- Available in multiple sizes
- Durable and corrosion-resistant
- Competitive prices in Kenya
- Fast nationwide delivery
- Expert technical support
